Shimano BT-DN300 – Internal Di2 Battery for 12-Speed Electronic Shifting

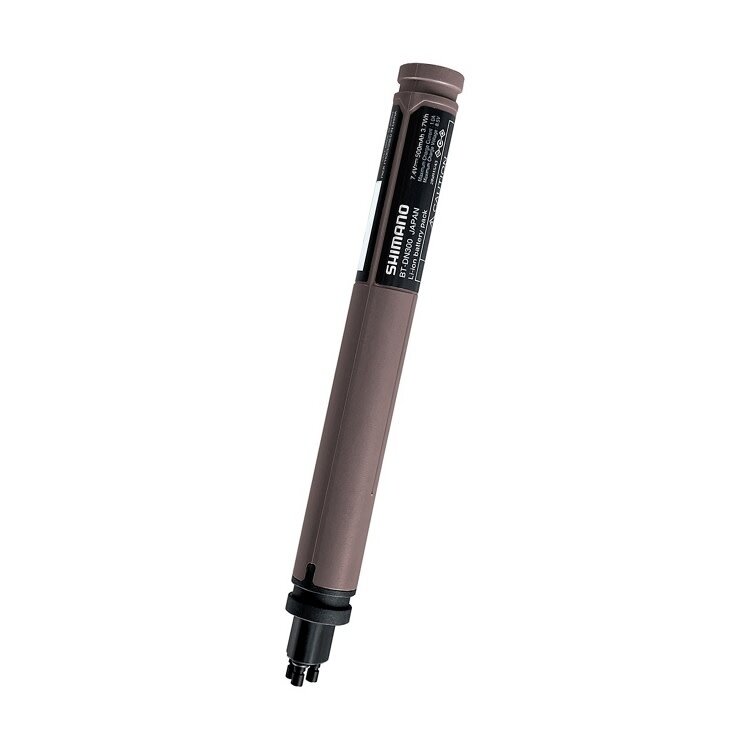

The Shimano BT-DN300 is a rechargeable internal lithium-ion battery designed to power compatible Shimano Di2 electronic shifting systems.

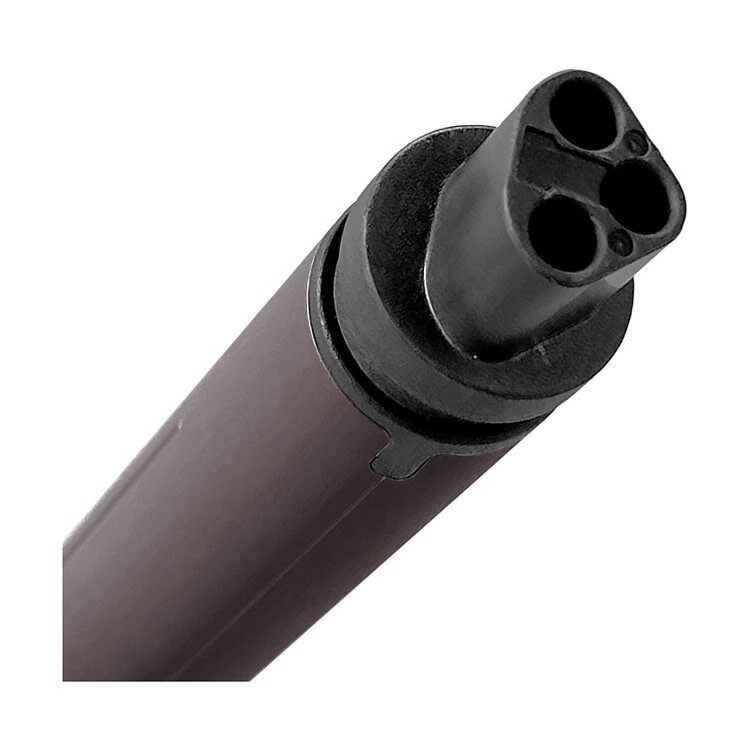

Featuring three compact SD300 connection ports, the BT-DN300 supplies power to compatible front and rear derailleurs while supporting Shimano's electronic drivetrain configurations.
Its slim design allows installation inside compatible bicycle frames or seatposts, maintaining a clean appearance without an externally mounted battery.
The BT-DN300 is compatible with selected Shimano Dura-Ace, Ultegra, 105 and GRX 12-speed Di2 systems.
Key Features
-
Internal Di2 battery: Designed for integration inside compatible frames or seatposts.
-
Three SD300 ports: Provides connections for compatible Shimano E-TUBE components.
-
Lithium-ion technology: Rechargeable battery designed for electronic shifting.
-
500 mAh capacity: Rated energy capacity of 3.7 Wh.
-
7.4 V nominal voltage: Provides power to compatible Di2 components.
-
Compact design: Shares its mounting method with the previous BT-DN110 battery.
-
Genuine Shimano component: Designed for reliable integration with compatible Di2 systems.
Technical Specifications
-
Brand: Shimano
-
Model: BT-DN300
-
North American manufacturer part number: IBTDN3002
-
Product type: Internal rechargeable battery
-
Battery chemistry: Lithium-ion
-
Nominal voltage: 7.4 V
-
Rated capacity: 500 mAh
-
Energy capacity: 3.7 Wh
-
Connection standard: Shimano SD300
-
Number of SD300 ports: 3
-
Number of SD50 ports: 0
-
Average weight: 52 g
-
Application: Compatible Shimano Di2 electronic shifting systems
Shimano Di2 Compatibility
According to Shimano's compatibility documentation, the BT-DN300 works with supported 12-speed Di2 systems, including:
-
Shimano Dura-Ace R9200: RD-R9250 / FD-R9250
-
Shimano Ultegra R8100: RD-R8150 / FD-R8150
-
Shimano 105 Di2 R7100: RD-R7150 / FD-R7150
-
Shimano GRX RX825 Di2: RD-RX825 / FD-RX825
Compatibility must be confirmed using the exact component models and Shimano E-TUBE configuration.
SD300 Connections
The BT-DN300 features three SD300 ports, allowing compatible electronic shifting components to be connected using Shimano EW-SD300 electric wires.
It does not have native SD50 ports. Older SD50 components require verification of compatibility and may need a Shimano EW-AD305 conversion adapter in supported configurations.
Charging and Installation
In compatible systems, the battery is charged through the rear derailleur using the Shimano EW-EC300 charging cable.
Follow Shimano's installation and battery-handling instructions. Confirm the mounting location, cable lengths and compatibility before installation.
Note: This product is the BT-DN300 battery. Charging cables, electric wires and drivetrain components are separate items unless explicitly included in the product package.
